Chemical Anchor Bolt With Nut And Washer

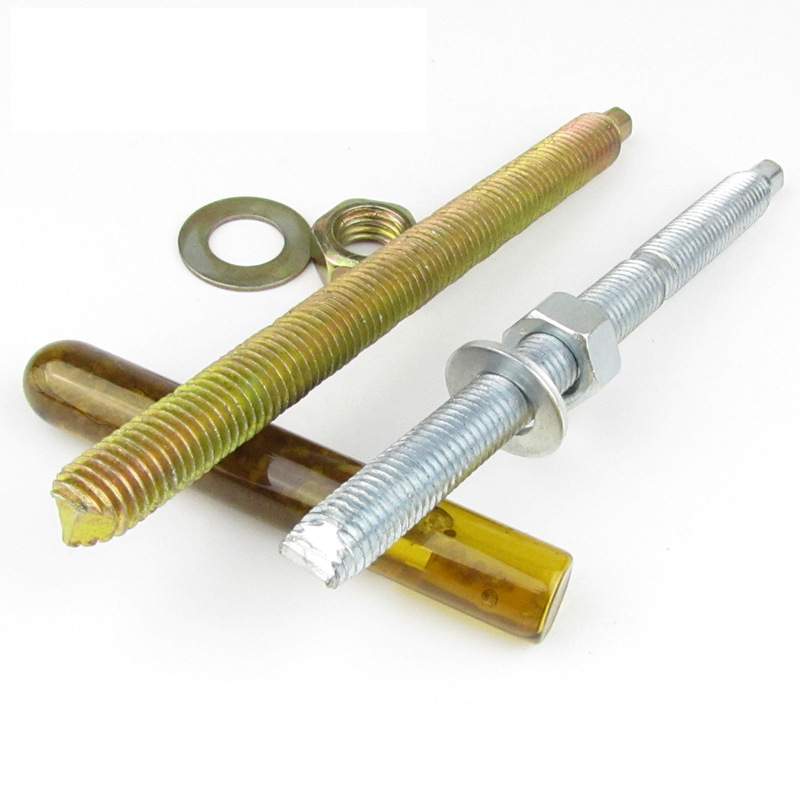

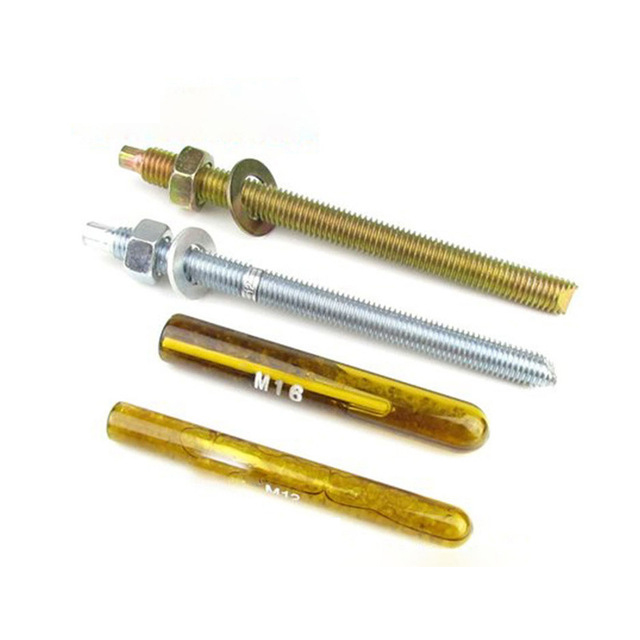

Product Picture:
Product advantages:
- Precision Machining
☆ Measure and process using precision machine tools and measuring tools under strictly controlled environmental conditions.
2.High-quality Metal material
☆ With long life, low heat generation, high hardness, high rigidity, low noise, high wear resistance and other characteristics.
3. Cost-effective
☆ The use of high-qualityMetal material, after precision processing and forming, greatly improves the user experience.
Parameter Of Product:
| Thread size | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | |
| d | |||||||||||
| D | Drilling diameter | 15 | 20 | 25 | 30 | 36 | 42 | 48 | 55 | 62 | 72 |
| t | installation depth | 110 | 125 | 170 | 210 | 280 | 300 | 350 | 400 | 500 | 600 |
| h | Stud exposed length | 30 | 35 | 40 | 50 | 60 | 80 | 90 | 100 | 120 | 130 |
| Single≈kg | With nut and washer (L=100mm) | 0.113 | 0.205 | 0.336 | 0.505 | 0.857 | 1.32 | 1.94 | 2.76 | 3.87 | 5.1 |
| per increase 10mm | 0.009 | 0.016 | 0.025 | 0.036 | 0.055 | 0.08 | 0.109 | 0.142 | 0.193 | 0.252 | |
OUR PACKAGE:
1. 25 kg bags or 50kg bags.
2. bags with pallet.
3. 25 kg cartons or cartons with pallet.
4. Packing as customers’ request
