China Wholesale Allen Head Screw Factories - DIN316 Carbon Steel Stainless Steel Butterfly Bolt Wing Bolt Thumb Wing Screw – Yateng Detail:

Product Picture:

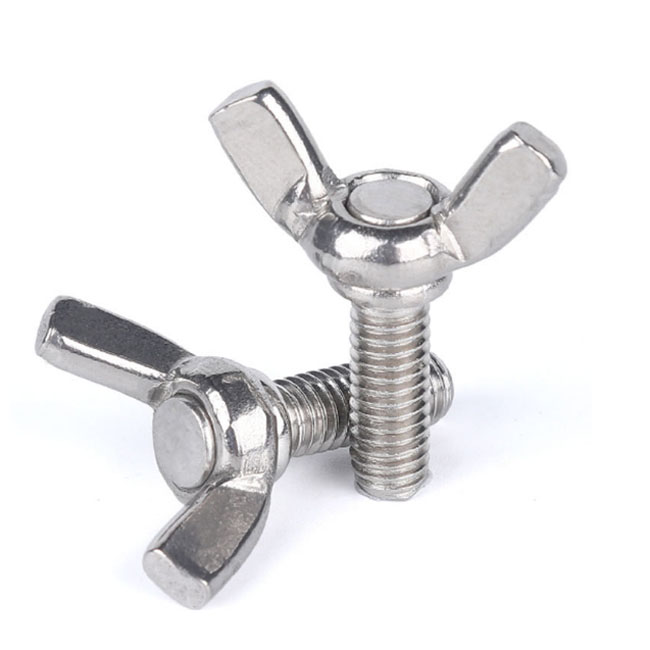

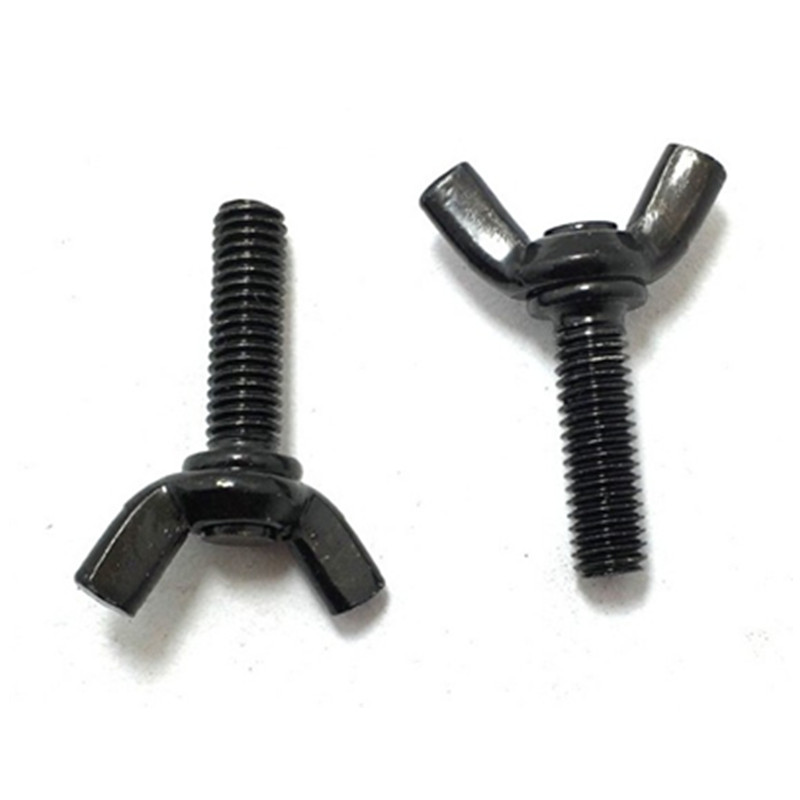

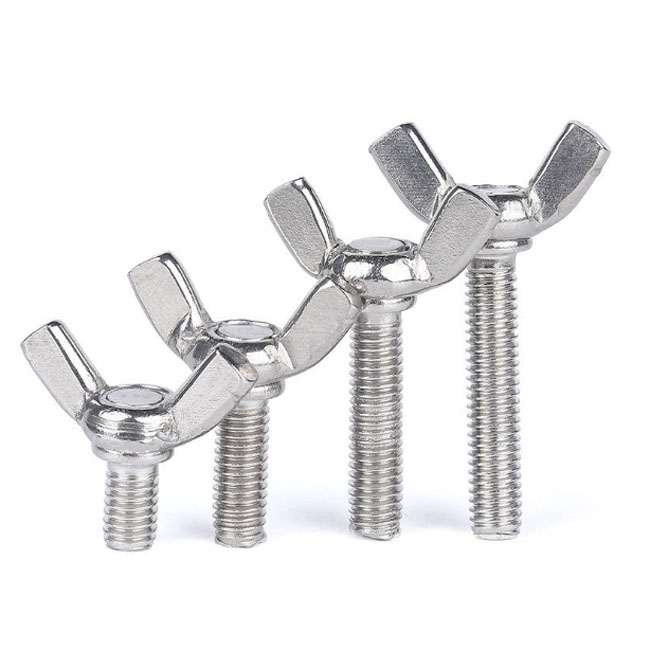

1600142238222_主图_03 1600142238222_主图_05 1600158704093_主图_01 1600158704093_主图_02

Product Description:

Product Name
Wing bolts DIN316
Size
M6-M64
Material
Carbon Steel, Stainless Steel, Brass, etc
Surface Treatment
Plain, black, zinc plated/according to your requirement
Standard
DIN GB ISO JIS BA ANSI
Grade
SUS201, SUS304, SUS316, A2-70, A2-80, A4-80, 4.8 6.8 8.8 10.9 12.9
Quality Policy
All the parts manufactured 100% inspection from OQC before shipping.
Thread
Coarse, fine
Used
Building industry machinery,etc
Non-standards
OEM is available, according to drawing or samples

Product advantages:

  1. Precision Machining

☆ Measure and process using precision machine tools and measuring tools under strictly controlled environmental conditions.

        2.High-quality Metal material

☆ With long life, low heat generation, high hardness, high rigidity, low noise, high wear resistance and other characteristics.

        3. Cost-effective

☆ The use of high-qualityMetal material, after precision processing and forming, greatly improves the user experience.

Parameter Of Product:

1589005973597704016m

Thread size M4 M5 M6 M8 M10 M12 M16 M20 M24
d
P pitch 0.7 0.8 1 1.25 1.5 1.75 2 2.5 3
dk Maximum 8 11 13 16 20 23 29 35 44
minimum value 6 8 10 13 17 20 26 32 41
d3 Maximum 7 9 11 12.5 16.5 19.5 23 29 37.5
minimum value 5.5 7.5 9 10.5 14.5 17.5 21 27 35
n Maximum 20 26 33 39 51 65 73 90 110
minimum value 18 24 30 36 48 62 70 86 106
h1 Maximum 1.9 2.3 2.3 2.8 4.4 4.9 6.4 6.9 9.4
minimum value 1.1 1.5 1.5 2 3.6 4.1 5.6 6.1 8.6
h2 Maximum 2.3 2.8 3.3 4.4 5.4 6.4 7.5 8 10.5
minimum value 1.7 2.3 2.7 3.6 4.6 5.6 6.5 7 9.5
H Maximum 10.5 13 17 20 25 33.5 37.5 46.5 56.5
minimum value 8.5 11 15 18 23 31 35 44 53.5
k Maximum 4.6 6.5 8 10 12 14 17 21 25
minimum value 3.2 4 5 6.5 8 10 13 16 20

OUR PACKAGE:

1. 25 kg bags or 50kg bags.
2. bags with pallet.
3. 25 kg cartons or cartons with pallet.
4. Packing as customers’ request
