China Wholesale M10 Eye Bolt Quotes - DIN 16903 Brass Knurled Insert Nut – Yateng Detail:
Product Picture:
Product Description:
Product Name
|
Quality Brass Knurled Insert Nuts
|
Material
|
H59 Brass ,Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade
Any Special Brass Material Composition as per customers requirement |
Surface technology
|
Natural, Nickle Plated, Tin Plated brass inserts or any coating as per customer specification.
|
Application scope
|
Laptops plastic shell, plastic shell desktop computers , GPS plastic shell , routers plastic shell, ABS, Aluminum,Fiberglass,Rubber, Thermalplastics, Injection Molding
|
Main Equipment
|
CNC turning and milling,CNC drilling machine,Internal and external grinding machine,CNC bending machine
|
Production capability
|
200000 Piece/Pieces per Week
|
Samples
|
Samples are free of charges if we have it in stock,You only need to pay the freight
|
Package
|
PE Bag +Carton Box+Pallet
|
Packing quantity
|
MIN1000PCS/Bag
|
Advantage
|
1.good price and quality 2.drawing appreciate 3.OEM service
|
Product advantages:
- Precision Machining
☆ Measure and process using precision machine tools and measuring tools under strictly controlled environmental conditions.
2.High-quality Metal material
☆ With long life, low heat generation, high hardness, high rigidity, low noise, high wear resistance and other characteristics.
3. Cost-effective
☆ The use of high-qualityMetal material, after precision processing and forming, greatly improves the user experience.
Parameter Of Product:
Thread specification | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | |
d | ||||||||
k | 0.9 | 1 | 1.2 | 1.6 | 1.8 | 2 | 2.5 | |
h1 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 | |
n | 0.8 | 1 | 1.2 | 1.4 | 1.4 | 2.5 | 3 | |
d1 | (h12) | 3.2 | 3.4 | 3.8 | 4.5 | 5 | 6.4 | 7.4 |
dk | (Before knurling) | 3.5 | 3.8 | 4.2 | 5 | 5.5 | 7 | 8 |
d2 | (h11) | 3.5 | 3.8 | 4.2 | 5 | 5.5 | 7 | 8 |
h | (h12) | 3.5 | 4 | 4.5 | 5.5 | 6 | 7.5 | 9 |
OUR PACKAGE:
1. 25 kg bags or 50kg bags.
2. bags with pallet.
3. 25 kg cartons or cartons with pallet.
4. Packing as customers’ request

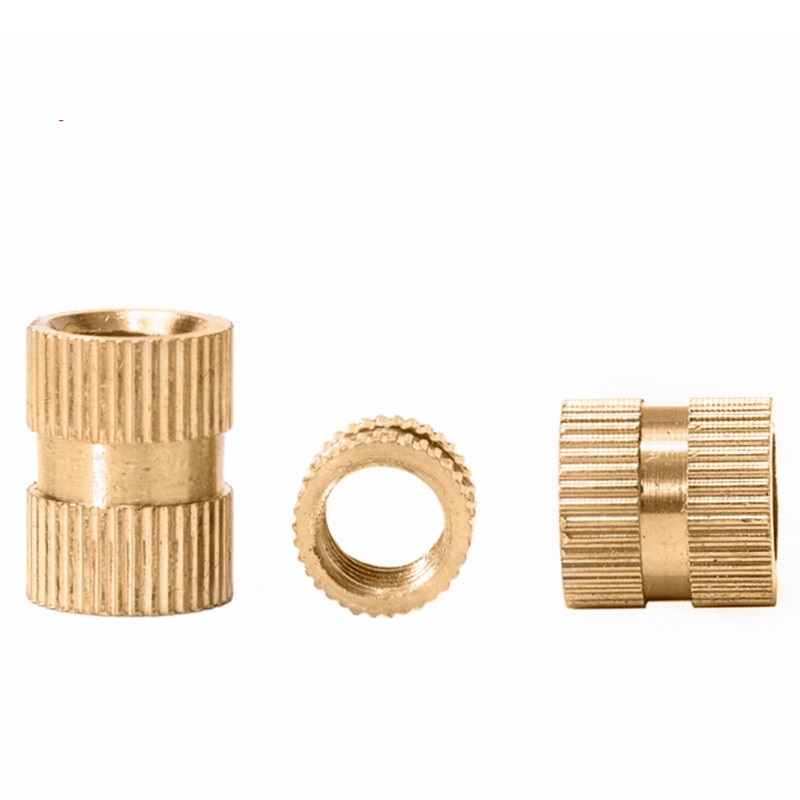

Product detail pictures:
![China Wholesale M10 Eye Bolt Quotes - DIN 16903 Brass Knurled Insert Nut – Yateng detail pictures](http://cdn.globalso.com/cyfastener/20220629_155545_025.jpg)
![China Wholesale M10 Eye Bolt Quotes - DIN 16903 Brass Knurled Insert Nut – Yateng detail pictures](http://cdn.globalso.com/cyfastener/20220629_155545_024.jpg)
![China Wholesale M10 Eye Bolt Quotes - DIN 16903 Brass Knurled Insert Nut – Yateng detail pictures](http://cdn.globalso.com/cyfastener/20220629_155545_022.jpg)
![China Wholesale M10 Eye Bolt Quotes - DIN 16903 Brass Knurled Insert Nut – Yateng detail pictures](http://cdn.globalso.com/cyfastener/20220629_155545_021.jpg)
![China Wholesale M10 Eye Bolt Quotes - DIN 16903 Brass Knurled Insert Nut – Yateng detail pictures](http://cdn.globalso.com/cyfastener/20220629_155545_020.jpg)
