China DIN 580 Carbon Steel Stainless Steel Lifting Eye Bolts Manufacturer and Supplier

DIN 580 Carbon Steel Stainless Steel Lifting Eye Bolts

Short Description:

EXW PRICE : 720USD-910USD/TON
Min.Order Quantity:2TONS
PACKAGING:BAG/BOX WITH PALLET
PORT:TIANJIN/QINGDAO/SHANGHAI/NINGBO
DELIVERY:5-30DAYS ON QTY
PAYMENT:T/T/LC
Supply Ability:600 TON PER MONTH

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us Download as PDF

Product Detail

Product Tags

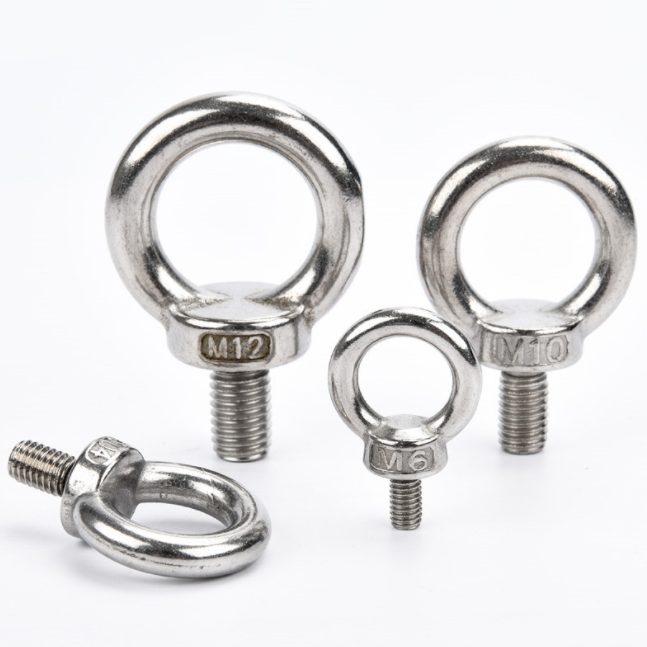

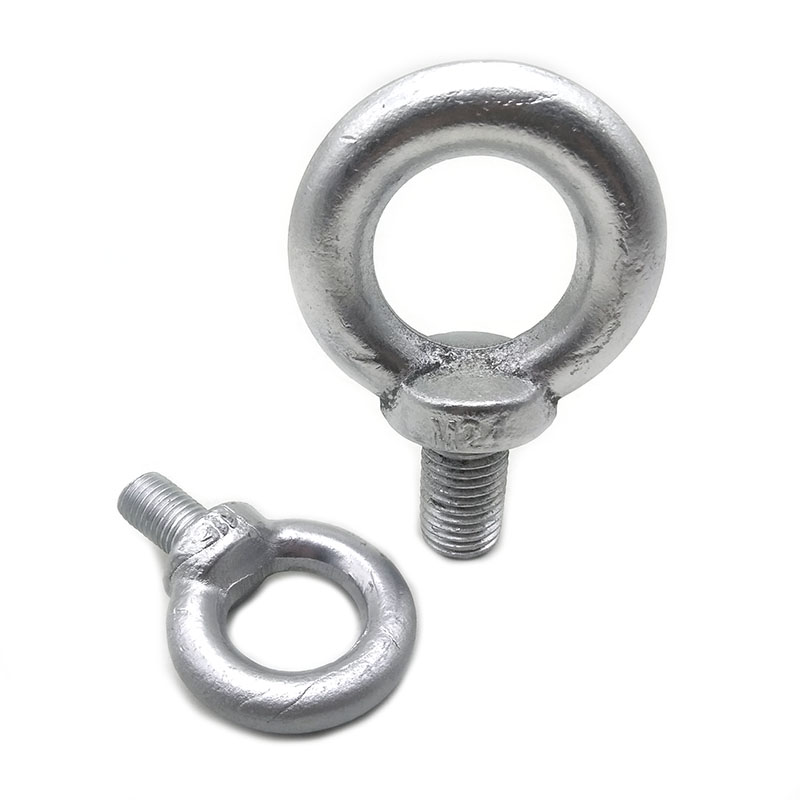

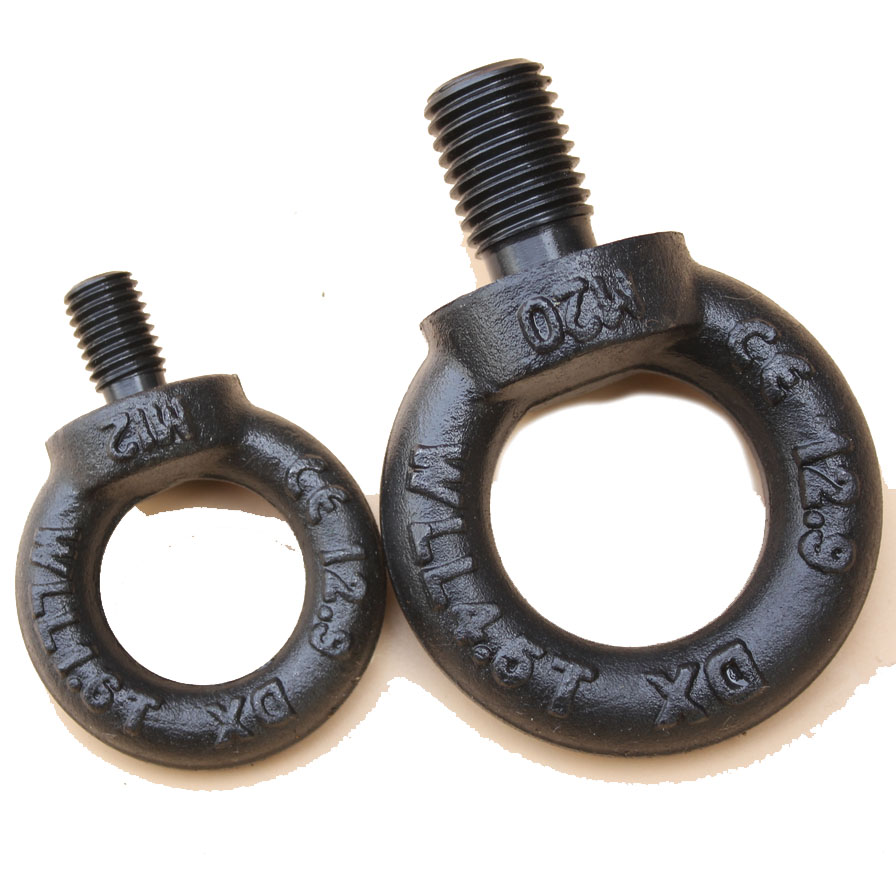

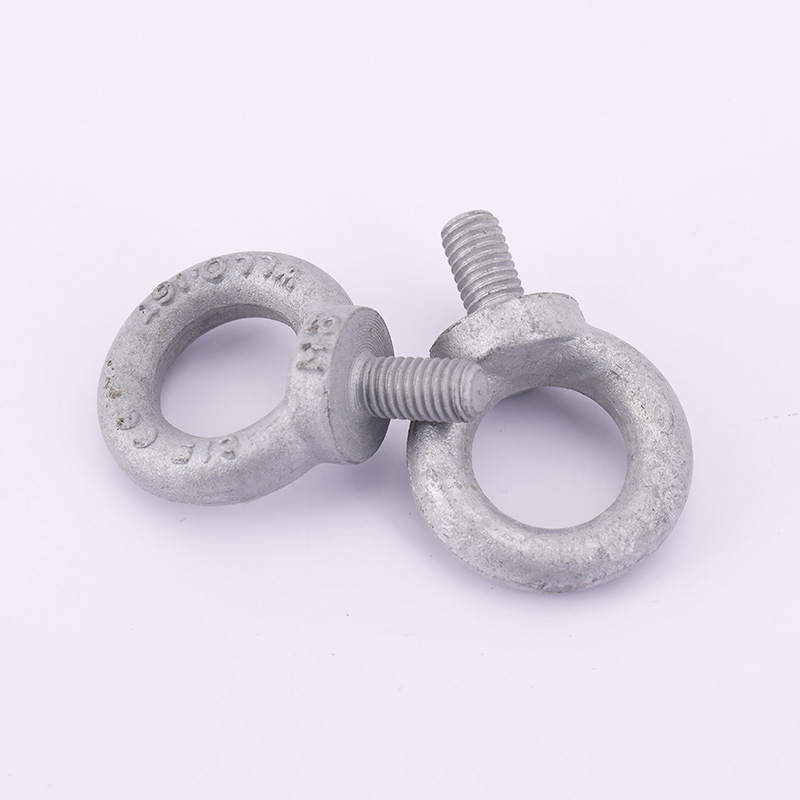

Product Picture:

Product Description:

Product name	Eye bolts
Surface treatment	Plain/HDG/ZP/Black
Size	M8-M20
Material	Stainless steel
Place of Origin	China
Port	Tianjin/Qingdao/Ningbo
Payment term	T/T
Delivery time	5-7days

Product advantages:

Precision Machining

☆ Measure and process using precision machine tools and measuring tools under strictly controlled environmental conditions.

2.High-quality Metal material

☆ With long life, low heat generation, high hardness, high rigidity, low noise, high wear resistance and other characteristics.

3. Cost-effective

☆ The use of high-qualityMetal material, after precision processing and forming, greatly improves the user experience.

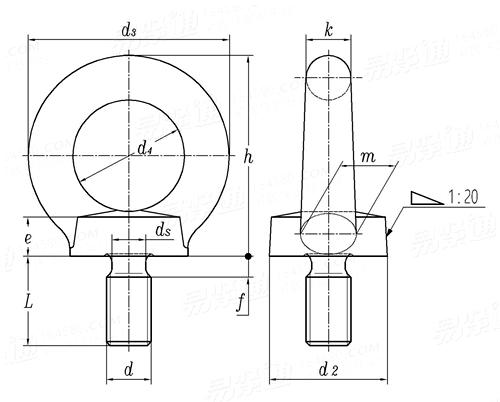

Parameter Of Product:

Thread specification		M8	M10	M12	M12	M16	M16	M20	M20	M24	M24	M30	M30	M36	M36
d
P	Pitch	1.25	1.5	1.75	1.5	2	1.5	2.5	3	3	2	3.5	2	4	3
d₂		20	25	30	30	35	35	40	40	50	50	65	65	75	75
d₃		36	45	54	54	63	63	72	72	90	90	108	108	126	126
d₄		20	25	30	30	35	35	40	40	50	50	60	60	70	70
e		6	8	10	10	12	12	14	14	18	18	22	22	26	26
f		2.5	3	3.5	3.5	4	4	5	5	6	6	7	7	8	8
d_s	Maximum	6	7.7	9.4	9.4	13	13	16.4	16.4	19.6	19.6	25	25	30.3	30.3
d_s	Minimum	5.82	7.48	9.18	9.18	12.73	12.73	16.13	16.13	19.27	19.27	24.67	24.67	29.91	29.91
h		36	45	53	53	62	62	71	71	90	90	109	109	128	128
k		8	10	12	12	14	14	16	16	20	20	24	24	28	28
L	Nominal	13	17	20.5	20.5	27	27	30	30	36	36	45	45	54	54
	Minimum	12.65	16.65	20.08	20.08	26.58	26.58	29.58	29.58	35.5	35.5	44.5	44.5	53.5	53.5
	Maximum	13.35	17.35	20.92	20.92	27.42	27.42	30.42	30.42	36.5	36.5	45.5	45.5	54.5	54.5
m		10	12	14	14	16	16	19	19	24	24	28	28	32	32
Single weight (steel)≈kg		0.06	0.11	0.18	0.18	0.28	0.28	0.45	0.45	0.74	0.74	1.66	1.66	2.65	2.65

Thread specification		M42	M42	M48	M48	M56	M56	M64	M64	M72	M72	M80	M80	M100	M100
d
P	Pitch	4.5	3	5	3	5.5	4	6	4	6	4	6	4	6	4
d₂		85	85	100	100	110	110	120	120	150	150	170	170	190	190
d₃		144	144	166	166	184	184	206	206	260	260	296	296	330	330
d₄		80	80	90	90	100	100	110	110	140	140	160	160	180	180
e		30	30	35	35	38	38	42	42	50	50	55	55	60	60
f		9	9	10	10	11	11	12	12	12	12	12	12	12	12
d_s	Maximum	35.6	35.6	41	41	48.3	48.3	55.7	55.7	63.7	63.7	71.7	71.7	91.7	91.7
d_s	Minimum	35.21	35.21	40.61	40.61	47.91	47.91	55.24	55.24	63.24	63.24	71.24	71.24	91.16	91.16
h		147	147	168	168	187	187	208	208	260	260	298	298	330	330
k		32	32	38	38	42	42	48	48	60	60	68	68	75	75
L	Nominal	63	63	68	68	78	78	90	90	100	100	112	112	130	130
	Minimum	62.4	62.4	67.4	67.4	77.4	77.4	89.3	89.3	99.3	99.3	111.3	111.3	129.2	129.2
	Maximum	63.6	63.6	68.6	68.6	78.6	78.6	90.7	90.7	100.7	100.7	112.7	112.7	130.8	130.8
m		38	38	46	46	50	50	58	58	72	72	80	80	88	88
Single weight (steel)≈kg		4.03	4.03	6.38	6.38	8.8	8.8	12.4	12.4	23.3	23.3	34.2	34.2	49.1	49.1
