DIN 935 Carbon Steel Stainless Steel Hex Slotted Nut Castle Nut

DIN 935 Carbon Steel Stainless Steel Hex Slotted Nut Castle Nut Featured Image
  • DIN 935 Carbon Steel Stainless Steel Hex Slotted Nut Castle Nut
  • DIN 935 Carbon Steel Stainless Steel Hex Slotted Nut Castle Nut
  • DIN 935 Carbon Steel Stainless Steel Hex Slotted Nut Castle Nut
  • DIN 935 Carbon Steel Stainless Steel Hex Slotted Nut Castle Nut
  • DIN 935 Carbon Steel Stainless Steel Hex Slotted Nut Castle Nut
  • DIN 935 Carbon Steel Stainless Steel Hex Slotted Nut Castle Nut

Short Description:

EXW PRICE : 720USD-910USD/TON
Min.Order Quantity:2TONS
PACKAGING:BAG/BOX WITH PALLET
PORT:TIANJIN/QINGDAO/SHANGHAI/NINGBO
DELIVERY:5-30DAYS ON QTY
PAYMENT:T/T/LC
Supply Ability:600 TON PER MONTH


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
    • Download as PDF

    Product Detail

    Product Tags

    Product Picture:

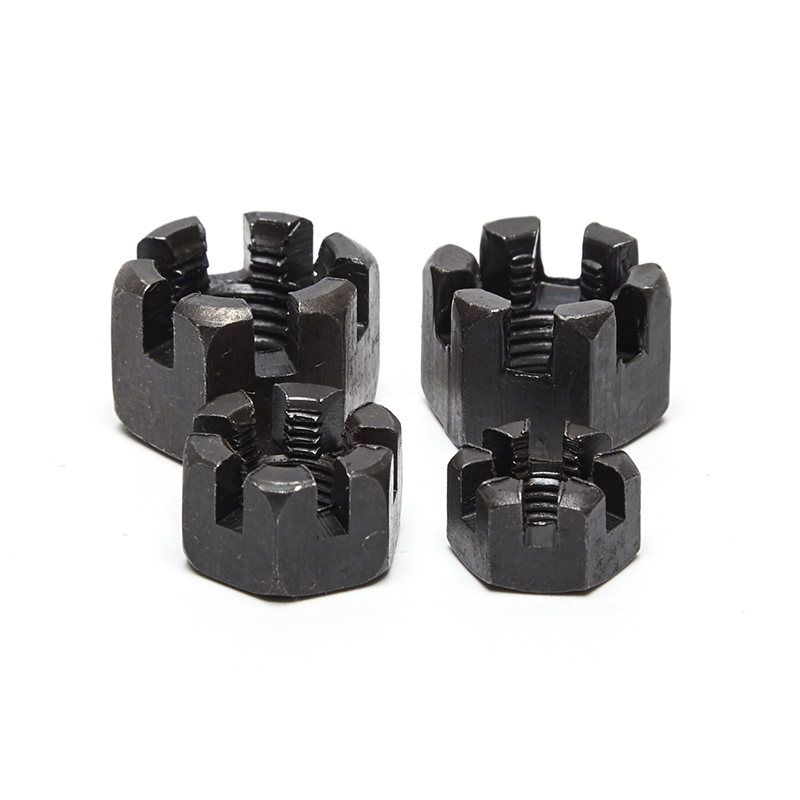

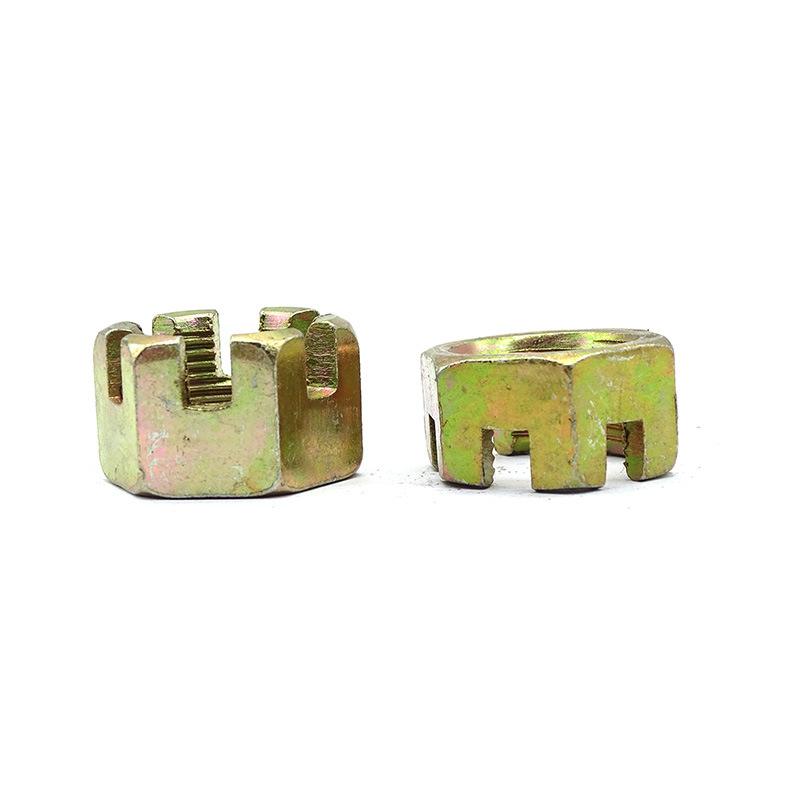

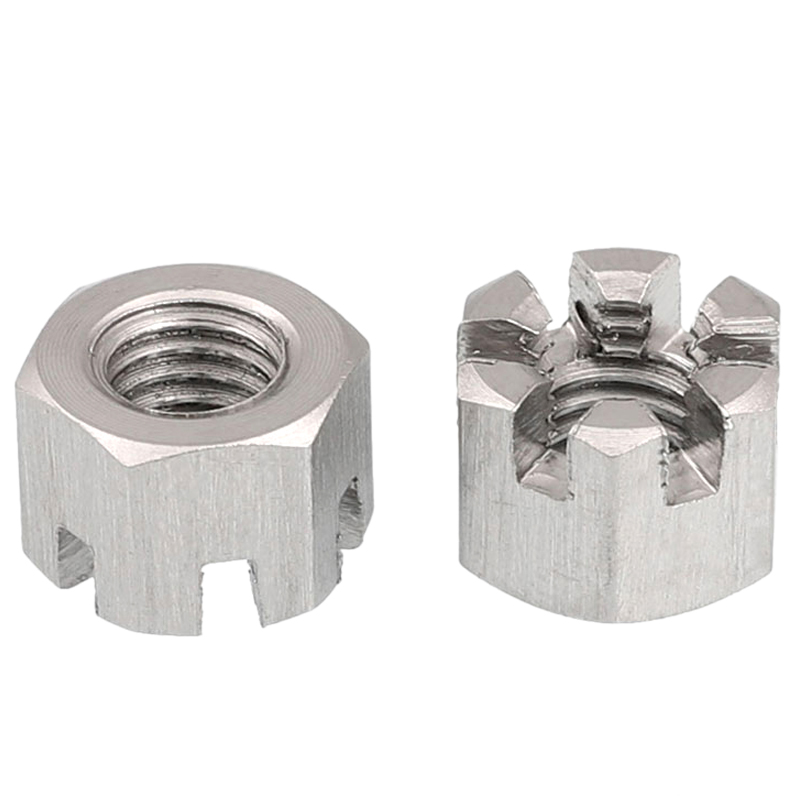

    O1CN01fXR6l51QeV8ubvak9_!!2207979482001 O1CN01YobF2Q2DFgoZeiXHa_!!3306038580 O1CN0135dvnF1FWIPHbCXUp_!!2212837320494

    Product Description:

    Standard DIN935
    Grade 6, 8,A2-70,A4-70,A4-90
    Material Carbon steel \ Stainless Steel
    Finish Galvanized
    Size M4-M100
    Delivery time Normally in 30-40 days.
    Trade Assurance Protect your order everything
    Package Cartons&pallets or according to customer’s requirement.

    Product advantages:

    1. Precision Machining

    ☆ Measure and process using precision machine tools and measuring tools under strictly controlled environmental conditions.

            2.High-quality Metal material

    ☆ With long life, low heat generation, high hardness, high rigidity, low noise, high wear resistance and other characteristics.

            3. Cost-effective

    ☆ The use of high-qualityMetal material, after precision processing and forming, greatly improves the user experience.

    Parameter Of Product:

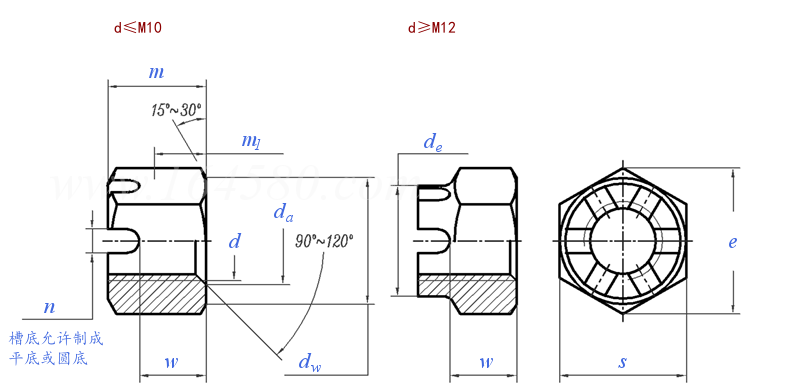

    263_zh

    Thread size M4 M5 M6 (M7) M8 M10 M10 M12 M12 (M14) (M14) M16
    d
    P Pitch (coarse) 0.7 0.8 1 1 1.25 1.5 1.5 1.75 1.75 2 2 2
    fine teeth - - - - 1 1.25 1.25 1.5 1.5 1.5 1.5 1.5
    fine teeth - - - - - 1 1 1.25 1.25 - - -
    da minimum 4 5 6 7 8 10 10 12 12 14 14 16
    maximum value 4.6 5.75 6.75 7.75 8.75 10.8 10.8 13 13 15.1 15.1 17.3
    de maximum value / / / / / / / 16 17 18 19 22
    minimum / / / / / / / 15.57 16.57 17.57 18.48 21.48
    dw minimum 5.8 6.8 8.8 9.5 11.3 14.3 15.3 16.2 17.2 19.2 20.2 22.2
    e minimum 7.66 8.79 11.05 12.12 14.38 17.77 18.9 20.03 21.1 23.35 24.49 26.75
    m max = nominal 5 6 7.5 8 9.5 12 12 15 15 16 16 19
    minimum 4.7 5.7 7.14 7.64 9.14 11.57 11.57 14.57 14.57 15.57 15.57 18.48
    m1 2.3 3 3.8 4.2 4.9 6.1 6.1 7.7 7.7 8.2 8.2 9.8
    n minimum 1.2 1.4 2 2 2.5 2.8 2.8 3.5 3.5 3.5 3.5 4.5
    maximum value 1.45 1.65 2.25 2.25 2.75 3.05 3.05 3.8 3.8 3.8 3.8 4.8
    s max = nominal 7 8 10 11 13 16 17 18 19 21 22 24
    minimum 6.78 7.78 9.78 10.73 12.73 15.73 16.73 17.73 18.67 20.67 21.67 23.67
    w minimum 2.9 3.7 4.7 5.2 6.14 7.64 7.64 9.64 9.64 10.57 10.57 12.57
    maximum value 3.2 4 5 5.5 6.5 8 8 10 10 11 11 13
    Type Cotter pins according to DIN 94 1×10 1.2×12 1.6×14 1.6×14 2×16 2.5×20 2.5×20 3.2×22 3.2×22 3.2×25 3.2×25 4×28
    Thousand Piece Weight (Steel)≈kg 1.12 2.3 3.16 3.96 7.35 15.8 15.8 20 20 27 27 38.9
    Thread size (M18) M20 (M22) (M22) M24 (M27) M30 (M33) M36 (M39) M42 (M45)
    d
    P Pitch (coarse) 2.5 2.5 2.5 2.5 3 3 3.5 3.5 4 4 4.5 4.5
    fine teeth 1.5 2 1.5 1.5 2 2 2 2 3 3 3 3
    fine teeth 2 1.5 2 2 - - - - - - - -
    da minimum 18 20 22 22 24 27 30 33 36 39 42 45
    maximum value 19.5 21.6 23.8 23.8 25.9 29.2 32.4 35.6 38.9 42.1 45.4 48.6
    de maximum value 25 28 30 32 34 38 42 46 50 55 58 62
    minimum 24.3 27.3 29.3 31 33 37 41 45 49 53.8 56.8 60.8
    dw minimum 24.8 27.7 29.5 31.3 33.2 38 42.7 46.6 51.1 55.9 60.6 64.7
    e minimum 29.56 32.95 35.03 37.29 39.55 45.2 50.85 55.37 60.79 66.44 71.3 76.95
    m max = nominal 21 22 26 26 27 30 33 35 38 40 46 48
    minimum 20.16 21.16 25.16 25.16 26.16 29.16 32 34 37 39 45 47
    m1 11.2 11.9 13.5 13.5 14.2 16.6 18.2 19.8 21.9 23.5 25.9 27.5
    n minimum 4.5 4.5 5.5 5.5 5.5 5.5 7 7 7 7 9 9
    maximum value 4.8 4.8 5.8 5.8 5.8 5.8 7.36 7.36 7.36 7.36 9.36 9.36
    s max = nominal 27 30 32 34 36 41 46 50 55 60 65 70
    minimum 26.16 29.16 31 33 35 40 45 49 53.8 58.8 63.1 68.1
    w minimum 14.57 15.57 17.57 17.57 18.48 21.48 23.48 25.48 28.48 30.28 33.38 35.38
    maximum value 15 16 18 18 19 22 24 26 29 31 34 36
    Type Cotter pins according to DIN 94 4×32 4×36 5×36 5×36 5×40 5×45 6.3×50 6.3×56 6.3×63 6.3×71 8×71 8×80
    Thousand Piece Weight (Steel)≈kg 57.5 75.2 93 93 131 192 264 333 447 584 710 860
    Thread size M48 (M52) M56 (M60) M64 (M68) M72 (M76) M80 (M85) M90 M100
    d
    P Pitch (coarse) 5 5 5.5 5.5 6 6 - - - - - -
    fine teeth 3 3 4 4 4 4 6 6 6 6 6 6
    fine teeth - - - - - - 4 4 4 4 4 4
    da minimum 48 52 56 60 64 68 72 76 80 85 90 100
    maximum value 51.8 56.2 61 64.8 69.1 73.4 77.8 82.1 86.4 91.8 97.2 108
    de maximum value 65 70 75 80 85 90 95 100 105 110 120 130
    minimum 63.8 68.8 73.8 78.8 83.6 88.6 93.6 98.6 103.6 108.6 118.6 128.4
    dw minimum 69.4 74.2 78.7 83.4 88.2 92.9 97.7 102.4 107.2 111.9 121.1 135.4
    e minimum 82.6 88.25 93.56 99.21 104.86 110.51 116.16 121.81 127.46 133.11 144.08 161.02
    m max = nominal 50 54 57 63 66 69 73 76 79 88 92 100
    minimum 49 52.8 55.8 61.8 64.8 67.8 71.8 74.8 77.8 86.6 90.6 98.6
    m1 29.1 32.3 34.7 37.1 39.3 41.7 44.9 47.3 49.7 52.9 56.1 62.5
    n minimum 9 9 9 11 11 11 11 11 11 14 14 14
    maximum value 9.36 9.36 9.36 11.43 11.43 11.43 11.43 11.43 11.43 14.43 14.43 14.43
    s max = nominal 75 80 85 90 95 100 105 110 115 120 130 145
    minimum 73.1 78.1 82.8 87.8 92.8 97.8 102.8 107.8 112.8 117.8 127.5 142.5
    w minimum 37.38 41.38 44.38 47.38 50.26 53.26 57.26 60.26 63.26 67.26 71.26 79.26
    maximum value 38 42 45 48 51 54 58 61 64 68 72 80
    Type Cotter pins according to DIN 94 8×80 8×90 8×100 10×100 10×100 10×112 10×112 10×125 10×140 13×140 13×140 13×160
    Thousand Piece Weight (Steel)≈kg 1060 1300 1500 1800 2150 2500 2900 3300 3700 4100 5450 7600

    OUR PACKAGE:

    1. 25 kg bags or 50kg bags.
    2. bags with pallet.
    3. 25 kg cartons or cartons with pallet.
    4. Packing as customers’ request
