DIN6798 A/J/V Toothed Serrated Lock Washer

DIN6798 A/J/V Toothed Serrated Lock Washer Featured Image
  • DIN6798 A/J/V Toothed Serrated Lock Washer
  • DIN6798 A/J/V Toothed Serrated Lock Washer
  • DIN6798 A/J/V Toothed Serrated Lock Washer
  • DIN6798 A/J/V Toothed Serrated Lock Washer
  • DIN6798 A/J/V Toothed Serrated Lock Washer
  • DIN6798 A/J/V Toothed Serrated Lock Washer
  • DIN6798 A/J/V Toothed Serrated Lock Washer

Short Description:

EXW PRICE : 720USD-910USD/TON
Min.Order Quantity:2TONS
PACKAGING:BAG/BOX WITH PALLET
PORT:TIANJIN/QINGDAO/SHANGHAI/NINGBO
DELIVERY:5-30DAYS ON QTY
PAYMENT:T/T/LC
Supply Ability:600 TON PER MONTH


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
    • Download as PDF

    Product Detail

    Product Tags

    Product Picture:

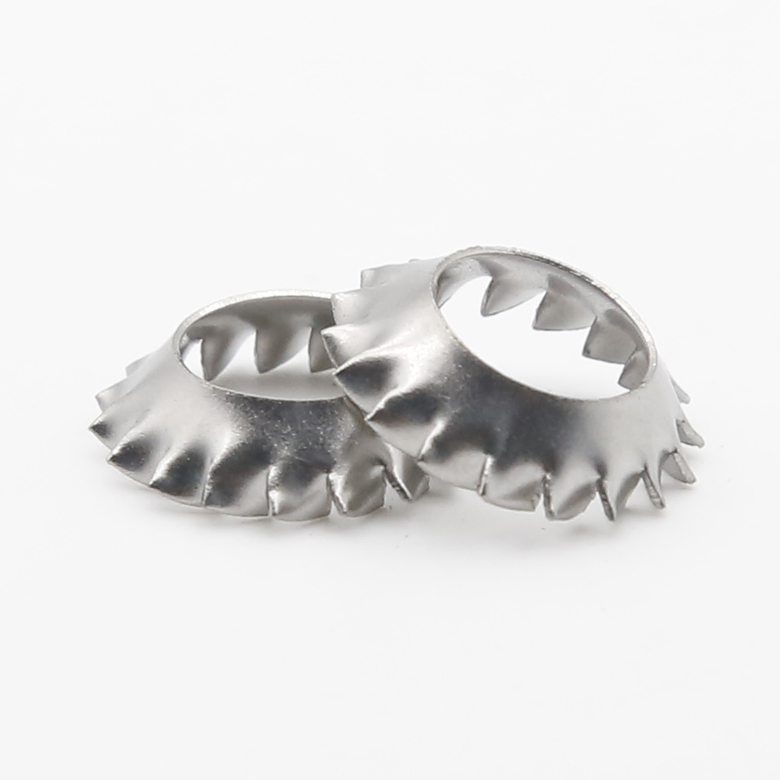

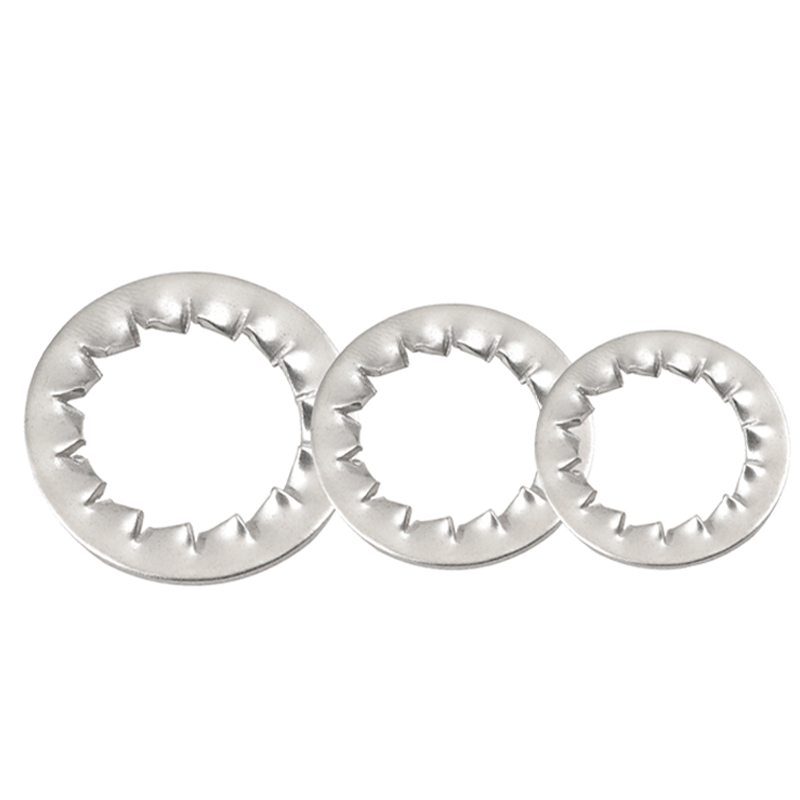

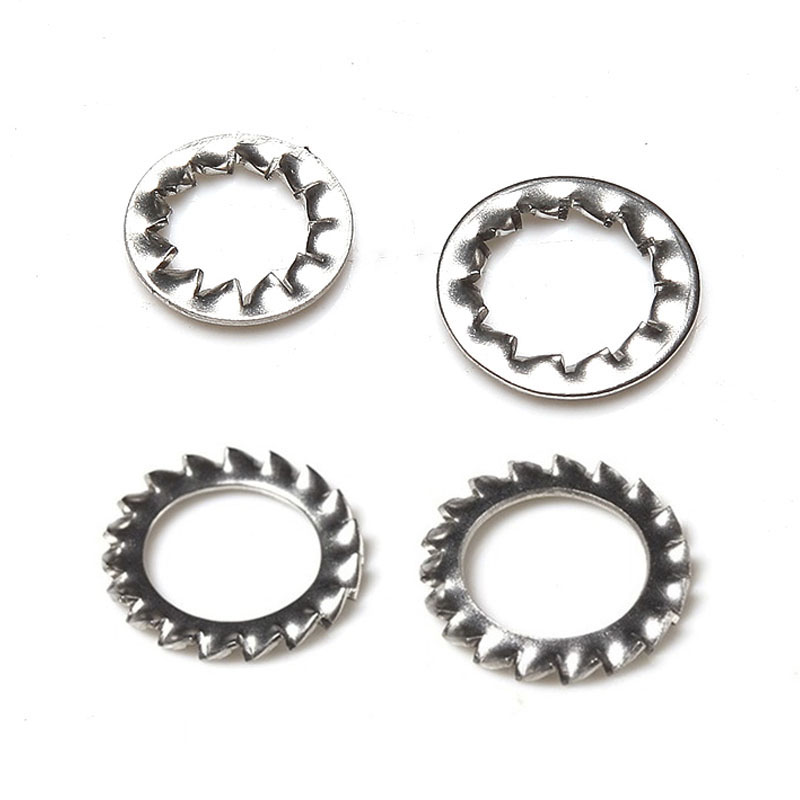

    20220630_142416_000 O1CN014ApQIJ1Sk7JEG3GeG_!!2212113882284 20220630_142511_006

    Product Description:

    Product Name
    Lock Washer DIN6798
    Material
    Stainless steel:A2-70,A2-80,A4-70,A4-80
    Color
    Polish, Passication
    Standard
    DIN,ASME,ASNI,ISO
    Grade
    4.8 6.8 8.8 10.9 12.9,SUS201, SUS304, SUS316, A2-70, A2-80, A4-80
    Finished
    Polish, Passication
    Thread
    coarse, fine
    Used
    building industry machinery

    Parameter Of Product:

    DIN6798A

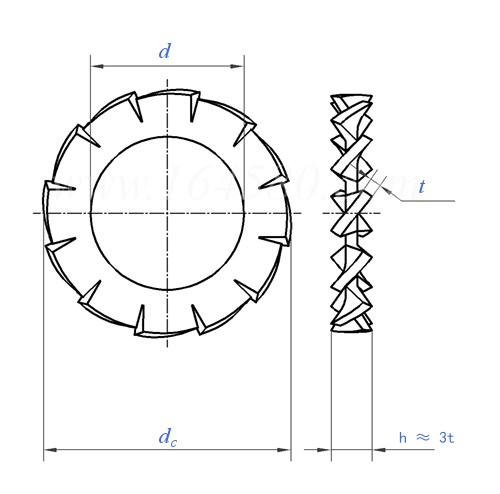

    280_zh

    Specification 1.7 2.2 2.7 3.2 3.7 4.3 5.3 6.4 7.4 8.4
    d min=nominal 1.7 2.2 2.7 3.2 3.7 4.3 5.3 6.4 7.4 8.4
    maximum value 1.84 2.34 2.84 3.38 3.88 4.48 5.48 6.62 7.62 8.62
    dc max = nominal 3.6 4.5 5.5 6 7 8 10 11 12.5 15
    minimum 3.3 4.2 5.2 5.7 6.64 7.64 9.64 10.57 12.07 14.57
    t 0.3 0.3 0.4 0.4 0.5 0.5 0.6 0.7 0.8 0.8
    number of teeth minimum 9 9 9 9 10 11 11 12 14 14
    thousand pieceskg 0.02 0.03 0.045 0.06 0.11 0.14 0.28 0.36 0.5 0.8
    Applicable thread M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M7 M8
    Specification 10.5 13 15 17 19 21 23 25 28 31
    d min=nominal 10.5 13 15 17 19 21 23 25 28 31
    maximum value 10.77 13.27 15.27 17.27 19.33 21.33 23.33 25.33 28.33 31.39
    dc max = nominal 18 20.5 24 26 30 33 36 38 44 48
    minimum 17.57 19.98 23.48 25.48 29.48 32.38 35.38 37.38 43.38 47.38
    t 0.9 1 1 1.2 1.4 1.4 1.5 1.5 1.6 1.6
    number of teeth minimum 16 16 18 18 18 20 20 20 22 22
    thousand pieceskg 1.25 1.6 2.3 2.9 5 6 7.5 8 12 14
    Applicable thread M10 M12 M14 M16 M18 M20 M22 M24 M27 M30

    DIN6798J

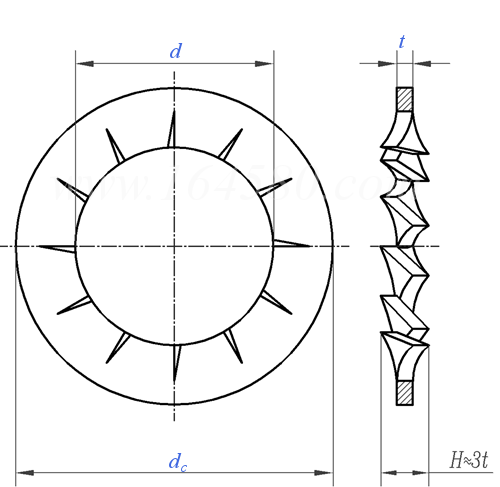

    286_zh

    Specification 1.7 2.2 2.7 3.2 3.7 4.3 5.3 6.4 7.4 8.4
    d min=nominal 1.7 2.2 2.7 3.2 3.7 4.3 5.3 6.4 7.4 8.4
    maximum value 1.84 2.34 2.84 3.38 3.88 4.48 5.48 6.62 7.62 8.62
    dc max = nominal 3.6 4.5 5.5 6 7 8 10 11 12.5 15
    minimum 3.3 4.2 5.2 5.7 6.64 7.64 9.64 10.57 12.07 14.57
    number of teeth minimum 7 7 7 7 8 8 8 9 10 10
    t 0.3 0.3 0.4 0.4 0.5 0.5 0.6 0.7 0.8 0.8
    thousand pieces kg 0.02 0.03 0.045 0.06 0.11 0.14 0.28 0.36 0.5 0.8
    Applicable thread M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M7 M8



    Specification 10.5 13 15 17 19 21 23 25 28 31
    d min=nominal 10.5 13 15 17 19 21 23 25 28 31
    maximum value 10.77 13.27 15.27 17.27 19.33 21.33 23.33 25.33 28.33 31.39
    dc max = nominal 18 20.5 24 26 30 33 36 38 44 48
    minimum 17.57 19.98 23.48 25.48 29.48 32.38 35.38 37.38 43.38 47.38
    number of teeth minimum 12 12 14 14 14 16 16 16 18 18
    t 0.9 1 1 1.2 1.4 1.4 1.5 1.5 1.6 1.6
    thousand pieces kg 1.25 1.6 2.3 2.9 5 6 7.5 8 12 14
    Applicable thread M10 M12 M14 M16 M18 M20 M22 M24 M27 M30

    DIN6798V

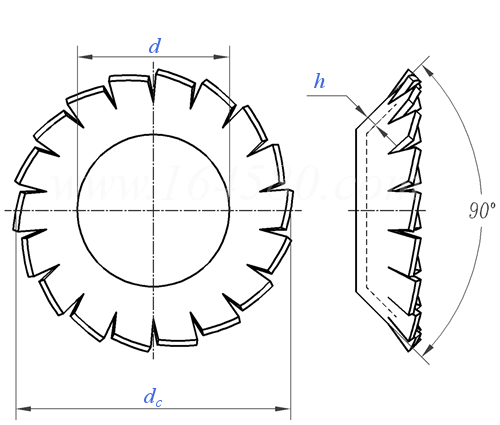

    285_zh

    Nominal diameter 2.2 2.7 3.2 3.7 4.3 5.3 6.4 8.4 10.5 13 15 17
    d
    d min=nominal 2.2 2.7 3.2 3.7 4.3 5.3 6.4 8.4 10.5 13 15 17
    maximum value 2.34 2.84 3.38 3.88 4.48 5.48 6.62 8.62 10.77 13.27 15.27 17.27
    dc 4.2 5.1 6 7 8 9.8 11.8 15.3 19 23 26.2 30.2
    h 0.2 0.2 0.2 0.25 0.25 0.3 0.4 0.4 0.5 0.5 0.6 0.6
    number of teeth minimum 10 10 12 12 14 14 16 18 20 26 28 30
    thousand pieces kg 0.025 0.03 0.04 0.075 0.1 0.2 0.3 0.5 1 1.5 1.9 2.3
    Applicable thread M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10 M12 M14 M16

    OUR PACKAGE:

    1. 25 kg bags or 50kg bags.
    2. bags with pallet.
    3. 25 kg cartons or cartons with pallet.
    4. Packing as customers’ request
