DIN82101 DIN82103 D/U Type Anchor Shackle Bow Shackle

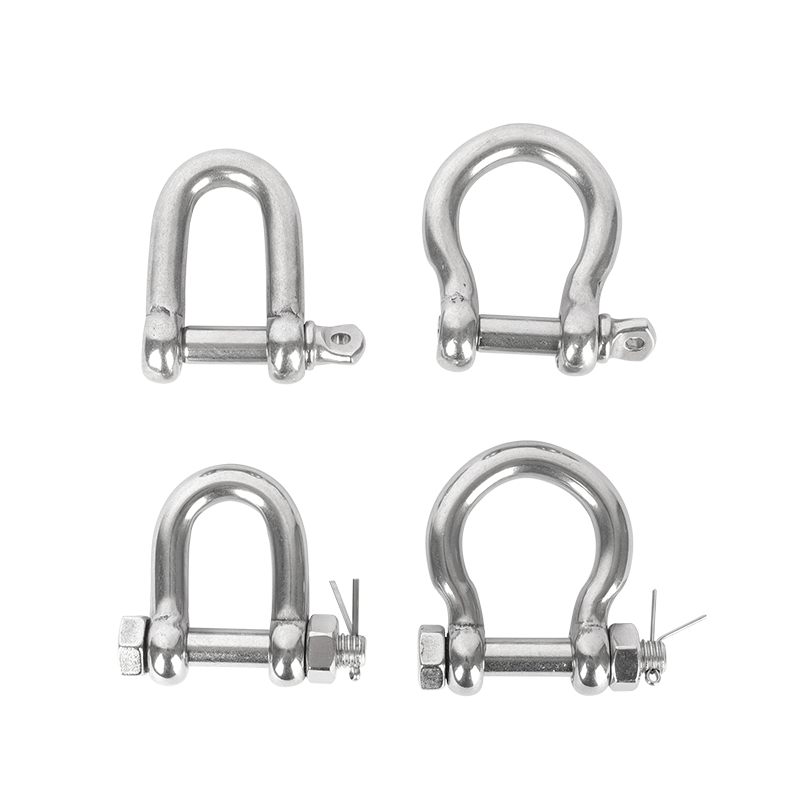

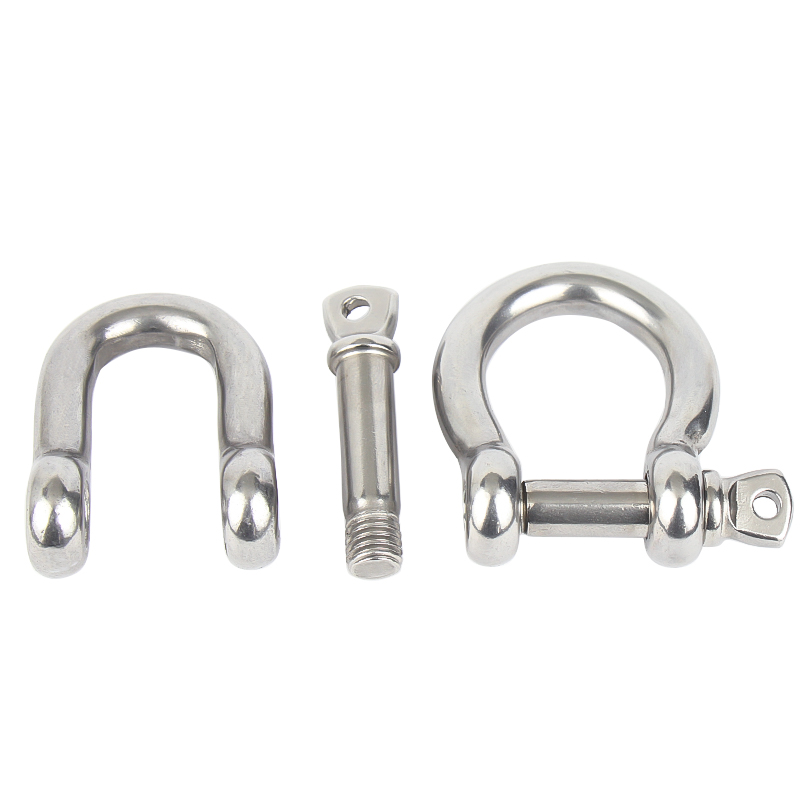

Product Picture:
Product Description:
|
Product Name
|
D/U Type Anchor shackle
|
|
Material
|
Carbon steel
|
|
Color
|
Zinc white
|
|
Standard
|
DIN
|
|
Grade
|
4.8
|
|
Size
|
M5 – M40
|
|
Used
|
building industry machinery
|
Product advantages:
- Precision Machining
☆ Measure and process using precision machine tools and measuring tools under strictly controlled environmental conditions.
2.High-quality Metal material
☆ With long life, low heat generation, high hardness, high rigidity, low noise, high wear resistance and other characteristics.
3. Cost-effective
☆ The use of high-qualityMetal material, after precision processing and forming, greatly improves the user experience.
Parameter Of Product:
DIN82101
| Specification | 0.06 | 0.1 | 0.16 | 0.25 | 0.4 | 0.6 | 1 | 1.6 | 2 | 2.5 | |
| type | A | A | A | A | A,B | A,B | A,B | A,B | A,B | A,B | |
| b1 | 6 | 7 | 8 | 11 | 14 | 17 | 21 | 27 | 30 | 33 | |
| b2 | 13 | 15 | 18 | 25 | 30 | 37 | 47 | 61 | 68 | 75 | |
| d1 | 3.5 | 4 | 5 | 7 | 8 | 10 | 13 | 17 | 19 | 21 | |
| d2 | 8 | 10 | 12 | 16 | 20 | 24 | 32 | 40 | 44 | 48 | |
| d3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M22 | M24 | |
| d4 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 20 | 22 | 24 | |
| h1 | 12 | 15.5 | 18 | 24 | 30 | 36 | 49 | 61 | 67 | 73 | |
| h2 | 18 | 23 | 27 | 36 | 45 | 54 | 72 | 90 | 99 | 108 | |
| Single≈kg | A | 0.007 | 0.013 | 0.024 | 0.045 | 0.09 | 0.17 | 0.36 | 0.75 | 1 | 1.32 |
| B | - | - | - | - | 0.085 | 0.16 | 0.35 | 0.73 | 0.97 | 1.28 | |
| Specification | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 20 | |
| type | A,B | A,B | A,B | A,B | A,B | A,B | A,B | A,B | A,B | |
| b1 | 38 | 42 | 47 | 53 | 60 | 66 | 73 | 81 | 90 | |
| b2 | 86 | 96 | 107 | 121 | 136 | 150 | 167 | 185 | 206 | |
| d1 | 24 | 27 | 30 | 34 | 38 | 42 | 47 | 52 | 58 | |
| d2 | 54 | 60 | 72 | 78 | 90 | 96 | 104 | 120 | 136 | |
| d3 | M27 | M30 | M36 | M39 | M45 | M48 | M52 | M60 | M68 | |
| d4 | 27 | 30 | 36 | 39 | 45 | 48 | 52 | 60 | 68 | |
| h1 | 83.5 | 91 | 111 | 119.5 | 139.5 | 147 | 158 | 185 | 211 | |
| h2 | 123 | 135 | 162 | 176 | 203 | 216 | 234 | 270 | 306 | |
| Single≈kg | A | 1.8 | 2.4 | 3.9 | 5.3 | 7.9 | 10 | 13 | 18.5 | 27.2 |
| B | 1.7 | 2.3 | 3.7 | 5.1 | 7.6 | 9.7 | 12.7 | 18.1 | 26.8 | |
